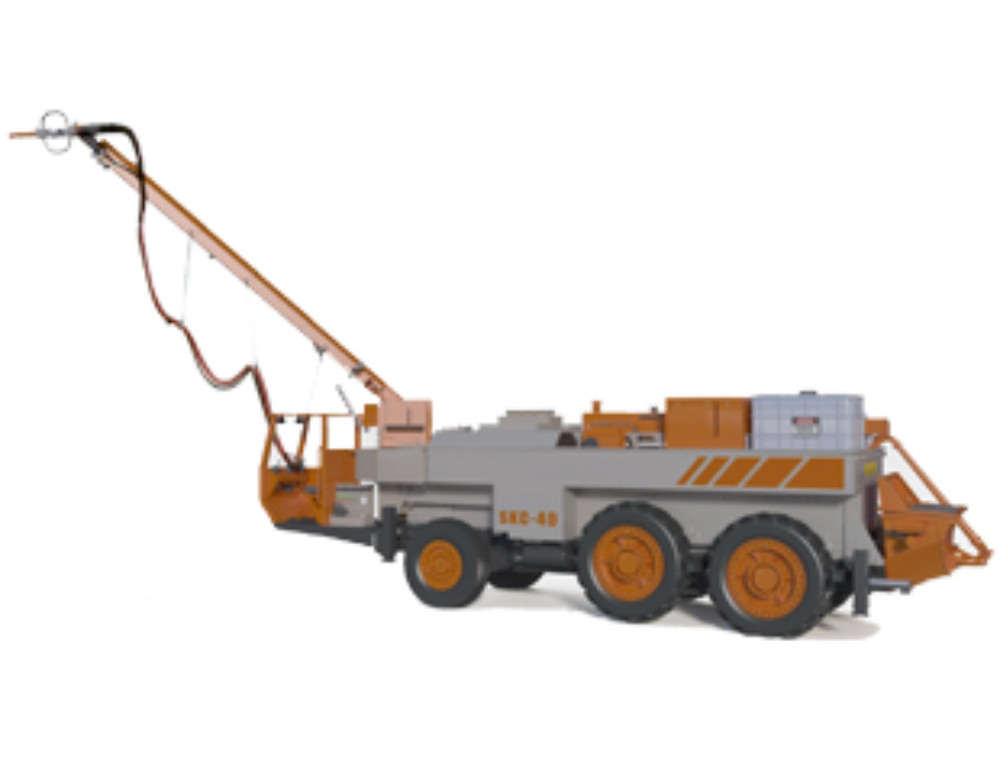

نظام رش الخرسانة الصغير SKC20
5 أسباب اختيار منتجاتنا
- Capacity:20-25M³/H;
- Walk: Wheeled, track;
- يقود: كهربائي, ديزل, تعمل بالهواء ;
- Concrete:Size15-25;
- Wet mix concrete tunnel;
رش الخرسانة للمبيعات الساخنة اختياري:
- SKC40 Concrete spraying machine
- SKC30 Concrte spraying machine
- SKC25,SKC20,SKC10,Concrete Spraying Machine
| No | Item | Data | |||||
| 1 | Whole machine | weight | 8T | ||||
| speed L/H | 5/15 Km/h | ||||||
| slope climbing capability | 25° | ||||||
| ground clearance | 245مم | ||||||
| traveling size | 5900x2000x2650(مم) | ||||||
| Moving mode | all hydraulic wheel type | ||||||
| 2 | power | engine | 60KW/2200rpm water cold,diesal | ||||
| motor | 45كيلوواط | ||||||
| 3 | Spraying System | boom type | fold,turn,telescopic( 3 section) | ||||
| max spray height | 11م | ||||||
| max spray width | 19م | ||||||
| max spray depth in front | 9.6م | ||||||
| the fold boom length | 2.48م | ||||||
| telescopic boom turn | 360° | ||||||
| telescopic boom length | 2.9م | ||||||
| nozzle rotary angle | 360° | ||||||
| nozzle swaying angle | 240° | ||||||
| spray pipe diameter | Φ80mm | ||||||
| 4 | Pump system | Theoretical pump capacity | 8～20m3/h (manual ) | ||||
| Theoretical max output pressure | 8MPa | ||||||
| Max aggregate material diameter | ≤16mm | ||||||
| pipe diameter | Φ125mm change toφ80mm | ||||||
| concrete cylinder diameter | φ140mm | ||||||
| concrete cylinder travel distance | 600مم | ||||||
| cylinder diameter(Vat/pole) | Φ80/Φ50 | ||||||
| cylinder travel distance | 600مم | ||||||
| concrete capacity | 300L | ||||||
| feeding position height | 1200مم | ||||||
| 5 | Dozing Accelerating Chemical System | flow rate | 60～600L/h | ||||
| pressure | 12bar | ||||||
| Chemical capacity | 200L | ||||||
| 6 | electrical hydraulic system | electric conponents:siemens,Omron；hydraulic conponents:Rexroth, danfoss | |||||
Introductions Of SKC20 Small Concrete Spraying machine
The ORIENTAL – Concrete spraying machine is a concrete spraying system specially developed for use in mines, tunnels and outdoor construction.
Working Principle of SKC20 Small Concrete Spraying machine
The ORIENTAL – SKC20 concrete spraying system is equipped with an automatic system for high precision synchronization between concrete pump and the additive dosing unit, thereby assuring spraying accuracy and quality. All the machine functions are available via the remote control, which facillitates the operator’s work.
Features Of SKC20 Small Concrete Spraying machine
The system has a modular design, and can fit a large verity of applications.
The system consists of a diesel hydrostatic driven carrier and a spraying boom.
The chassis is designed to work in the toughest conditions in line with the requirements of mines, tunnels and outdoor construction. The six wheel drive increase its perfect manoeuvrability in difficult driving situations.
